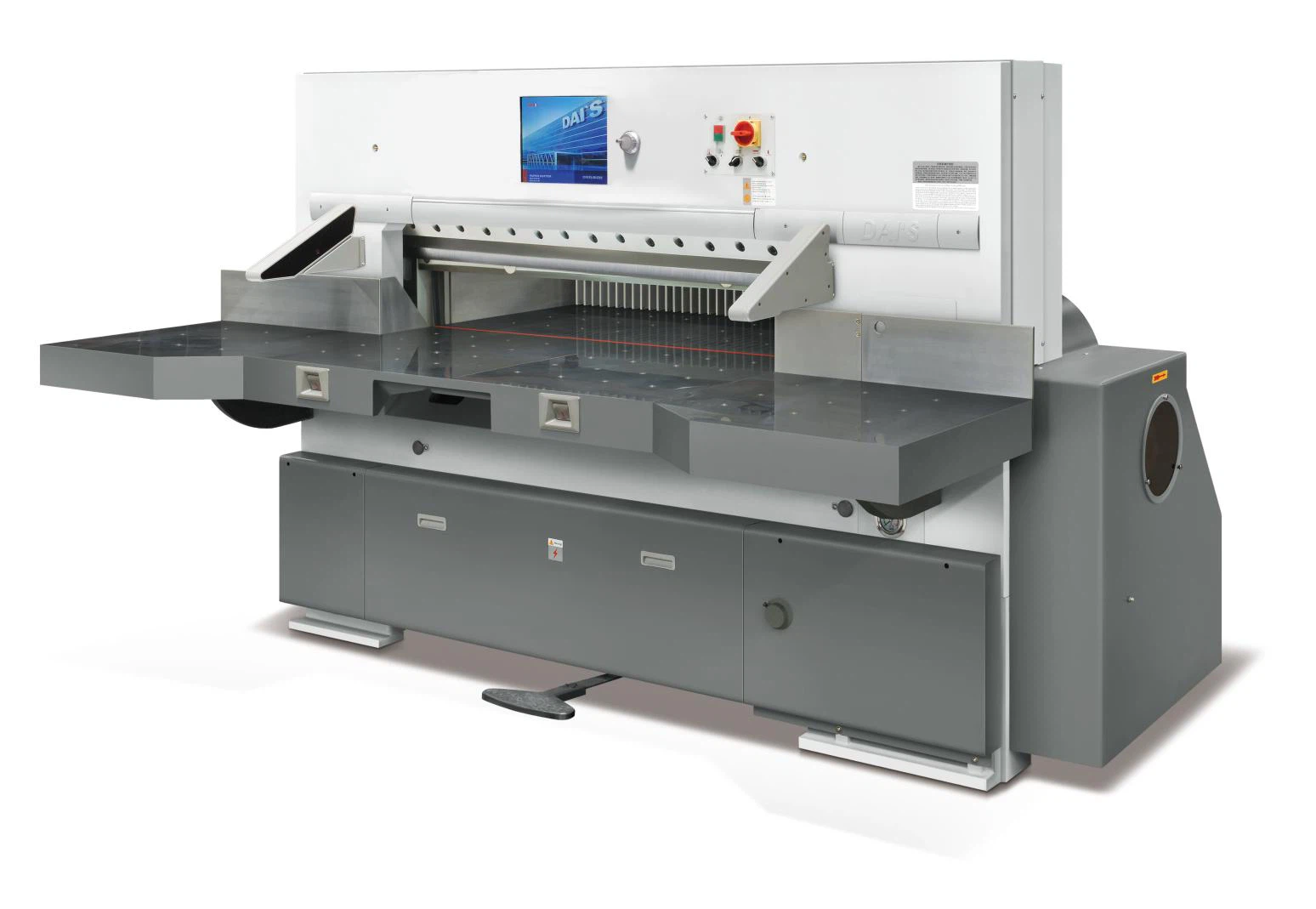

Zhejiang Dai's Printing Machine Co., Ltd. is one of the most reliable manufacturers and suppliers of 2200 paper cutting machine in China. If you're going to buy bulk discount 2200 paper cutting machine, welcome to get quotation from our factory. All customized machines are with high quality and competitive price.
Technical Parameter
|
model |
unit |
QZK2200M12 |
|
Cutting width |
mm |
2200 |
|
Cutting length |
mm |
2200 |
|
The cutting height |
mm |
160 |
|
Front extension of bench |
mm |
700 |
|
Table height |
mm |
930 |
|
The motor power |
kw |
7.5 |
|
Maximum paper pressure |
daN |
6500 |
|
Cutting speed |
times/min |
42 |
|
The net weight |
kg |
7000 |
|
Overall dimensions |
m |
3.9×3.4×1.7 |
|
Packing size |
m |
3.9×1.7×2.5 |
Equipment display
M12 15" COLOR TOUCH LCD
* Uses original imported computer control system from Microcut Colter &Peterson,
* USAwith a capacity of 40,000 programs and self - diagnosis functions.
* The display is available In four languages.
* Display precision is 0.01mm,the system's mechanical accuracy is 0.05mm,backguage speed is 15m/min.
Machine details

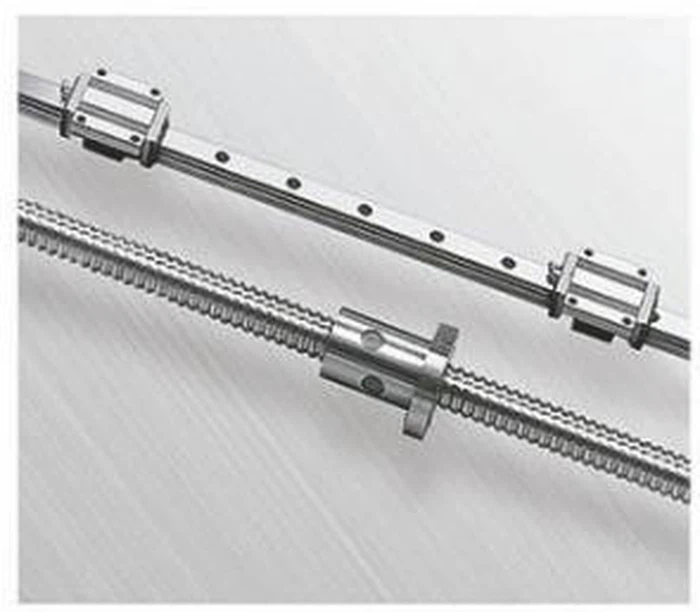

Ball lead screw and linear guide-rail makes paper impeller run smooth,low noise,accurate positioning,enhance the cutting precision and speed greatly,prolong the service lift of paper cutter.
The working tables are all chrome-plated and equipped with air balls which makes paper-pushing easily and rusty-proof. Large side working table(1000X800mm) is optional.
Machine details
Safety device for knife bed,overloading protect-ion for cutting,automatic return safety device
To provide infrared grating ciruit protection,in line with european ce standards.
Machine details
Imported hydraulic components are adopted in hydraulic system, the pressure can be adjusted,The paper is pressed twice by pressure-increased system.
Imported electric components LG,OMRON,siemens.
